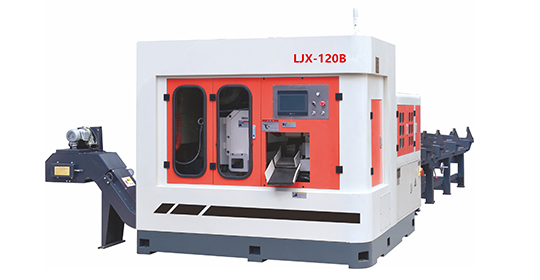

| Model | LJX-120B | |
|---|---|---|
| Cut-off capacity | Round bar/tube | Φ30-120mm |
| Square bar/tube | 30-100mm | |
| Saw head spindle | TCT carbide tipped saw blade type | Φ425*T2.7mm |
| Saw blade rotation speed | 18-150rpm | |
| MotorSpindle driving motor15kw/6p | ||
| The short tail length | A type | 20mm+ cutting length |
| B type | 70mm+ cutting length | |
| Hydraulic device | Work driving pressure | 90kg/C㎡(7MPa) |
| Tank capacity | 110L | |
| Machine dimension-weight | Dimension(L*W*H) | 6970*2700*1750mm |
| Weight(main body+shelf) | 6000kgs | |
