Applications: Use in auto, forging,military, mining machinery,bearing ,high-speed rail, steel processing industry etc.

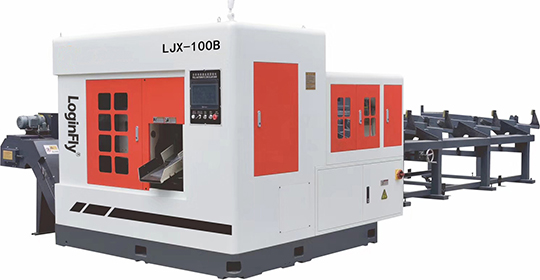

| Model | LJX-100B | |
|---|---|---|
| Cut-off capacity | Round bar/tube | Φ20-100mm |
| Square bar/tube | 20-80mm | |
| Saw head spindle | TCT carbide tipped saw blade type | Φ360*T2.6mm |
| Saw blade rotation speed | 20-170rpm | |
| MotorSpindle driving motor11kw/4p | ||
| The short tail length | A type | 20mm+ cutting length |
| B type | 55mm+ cutting length | |
| Hydraulic device | Work driving pressure | 70kg/C㎡(7MPa) |
| Tank capacity | 120L | |
| Machine dimension-weight | Dimension(L*W*H) | 7050*2850*1850mm |
| Weight(main body+shelf) | 5200kgs | |
Applications: Use in auto, forging,military, mining machinery,bearing ,high-speed rail, steel processing industry etc.
