Features

Selection of imported wire ruler encoder feed length control, higher than the grating ruler, not easy to be bad.
Saw press alarm function.
Saw things broken, sawing machine alarm, take the initiative to shut down.
Sawing machine according to the suspension function, for example, when you saw the material to half cut to want to stop, you can press the pause button, press the pause button when you want to start, the saw will continue the previous set of data and then work, will not return to zero Reshaped.

Parameter

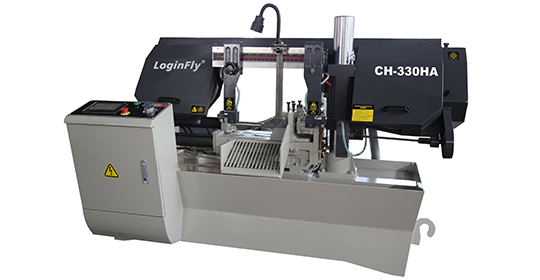

Model No. CH-330HA (Double Column)
Technical Data Cutting capacity(mm) 330mm for Round shape, 330X330 for square shape
Blade speed(m/min) 23/43/62/75
Blade size(mm) 34×1.1×4115
Main Motor(kw) 4
Hydraulic Motor(kw) 0.75
Coolant Pump(kw) 0.06
Work piece Clamping Hydraulic Vise
Blade Tension manual
Main Drive Worm wheel drive
Material feed Auto
Multiple feed 400mmx9 times auto feed
Machine size 2200×2100×1750
Machine weight 1700kg
Standard Equipment Blade cleaning brush Power blade cleaning brush
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Bundle cutting device YES
Automatic feed roller YES
NC control YES
Saw frame height selector gauge Automatic work height control
Roller table YES
Automatic Work YES
